Ultrasound Transducer Leakage Tester

Electrical safety test ensures TEE probe function

Previous Next

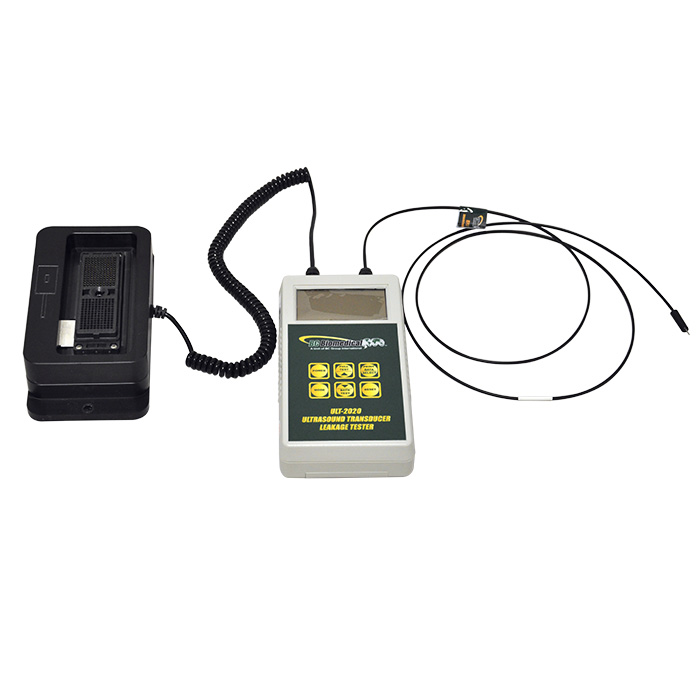

Electrical Leakage Tester

A properly conducted electrical leakage test is critical for TEE probe integrity and patient safety.

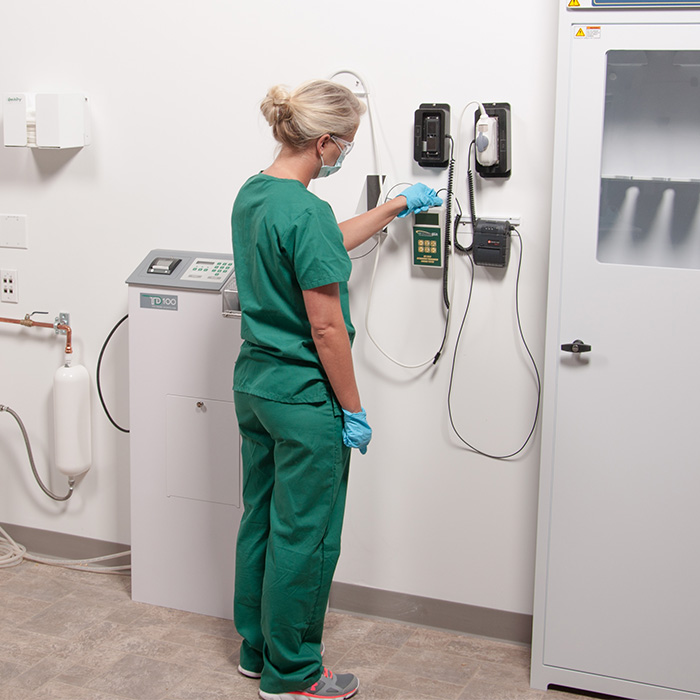

CS Medical and BC Group International have partnered to provide a safe and effective method in conducting the electrical leakage test within the disinfectant reservoir of the TD 100® Automated TEE Probe Disinfector or the TEEClean® Automated TEE Probe Cleaner Disinfector.

The ULT‑2000 Series is specifically designed to test the electrical safety of all types of diagnostic ultrasound transducers, totally independent of the ultrasound machine on which they are typically used. The integrity of the outer insulation barrier of the transducer as well as the capacitive leakage currents that exist are tested. The Intersocietal Accreditation Commission (IAC) recommends the structural and electrical integrity of the transducer be checked between each use, using an ultrasound transducer leakage tester.

Recommended Leak Testing System Components



Benefits

Eliminate Probe Damage

BC Group’s ULT line of second generation "Soft Touch" transducer adapters, completely eliminates the possibility of costly damage. These adapters utilize the actual multi-pin mating connector for the ultrasound transducer to be tested. The transducer electrical connector is subjected to only the same level of insertion and locking force that is normally seen when the transducer is connected to the ultrasound machine. There are no other undesired mechanical forces on the transducer electrical connector, or the individual pins within it. Take steps to avoid unnecessary and costly transducer electrical connector damage as a result of using older generation adapters.



Features

Range 0.5 to 500 µA - Designed to meet manufacturer transducer specifications User-selectable challenge (test) voltage (90 to 275 VAC) and frequency (50 or 60 Hz) Compatible with Dale Technology® and Fluke Biomedical® adapters Audio-visual test status indication
Large graphic display with backlighting allows easy selection of options and setup of parameters Selectable pass/fail or numerical test results On-board storage for up to 99 test records

ULT-PA-10

Part# & Manufacturer

ULT-PA-10

Siemens/Acuson

Ultrasound Platform

Sequoia

ULT-PA-11

Part# & Manufacturer

ULT-PA-11

SonoSite

Ultrasound Platform

180/180+ Titan

ULT-PA-12

Part# & Manufacturer

ULT-PA-12

Siemens

Ultrasound Platform

6.5EV13, EC9-4, etc...

ULT-PA-13

Part# & Manufacturer

ULT-PA-13

Siemens/Acuson

Ultrasound Platform

128XP

ULT-PA-14

Part# & Manufacturer

ULT-PA-14

Philips/ATL

Ultrasound Platform

Philips/HP 4500,
Sonos 5500/7500

ULT-PA-16

Part# & Manufacturer

ULT-PA-16

GE

Ultrasound Platform

Logiq, Vivid

ULT-PA-17

Part# & Manufacturer

ULT-PA-17

Philips/ATL

Ultrasound Platform

iE33/iU22

ULT-PA-19

Part# & Manufacturer

ULT-PA-19

Phillips

Ultrasound Platform

CX50, EPIQ

ULT-PA-20

Part# & Manufacturer

ULT-PA-20

Acuson/Toshiba

Ultrasound Platform

Toshiba PVF Series,
2B701-753

ULT-PA-21

Part# & Manufacturer

ULT-PA-21

Hitachi

Ultrasound Platform

EUP-ES52M, EUPSeries
Probes in general

ULT-PA-22

Part# & Manufacturer

ULT-PA-22

Ultraschallkopf-Aloka

Ultrasound Platform

SSD-620
SSD-650

ULT-PA-24

Part# & Manufacturer

ULT-PA-24

Philips/ATL

Ultrasound Platform

Call for details

ULT-PA-25

Part# & Manufacturer

ULT-PA-25

GE

Ultrasound Platform

GE LogiqBook, Vivid

ULT-PA-26

Part# & Manufacturer

ULT-PA-26

Acuson/Toshiba

Ultrasound Platform

Antares

ULT-PA-27

Part# & Manufacturer

ULT-PA-27

GE

Ultrasound Platform

GE YMS/RT

ULT-PA-25

Part# & Manufacturer

ULT-PA-30

GE

Ultrasound Platform

GE Vivid E9



View each TEE Complete Care® step



Product Information


CATALOG NUMBER
DESCRIPTION
ULT-2020
Electrical Leak Tester Base Model
ULT-PC-31
Electrical lead for TD 100
CS-200806
Print Kit
ULT-SP-20
Splitter for GE probes
ULT-AC-10
ULT Fork Adapter for GE probes


Download Product Specifications
