TEEClean

U.S. Patent No. 10,238,760

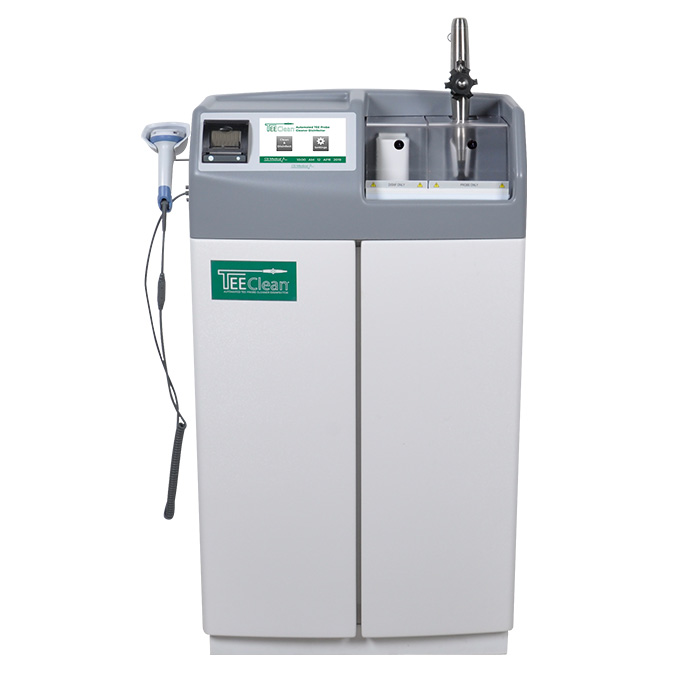

TEEClean Automated TEE Probe Cleaner Disinfector is the first product of its kind to be cleared by the US FDA. Designed exclusively for transesophageal echocardiogram ultrasound probes (TEE), TEEClean provides both manufacturers recommended cleaning and high-level disinfection of soiled TEE probes in the same device.

Current methods require manual cleaning to be completed so as to achieve proper high-level disinfection. TEEClean allows the healthcare professional to simply place a bedside cleaned TEE probe into the device, removing the potential of an ineffectively cleaned TEE probe being high-level disinfected.

TEEClean is the first

Automated Ultrasound Reprocessor

cleared by the US FDA

TEEClean provides both a scientifically verified and repeatable method for cleaning of soiled TEE probe. Incorporated in TEEClean is TEEZyme®, an enzymatic solution that is injected into the cleaning and disinfection reservoir once a soiled TEE probe has been properly inserted. The TEEClean microprocessor controller then monitors all parameters of the cleaning step to ensure completion prior to high-level disinfection. After cleaning, TEEClean begins the validated and repeatable high-level disinfection process.


Using TEEClean is simple

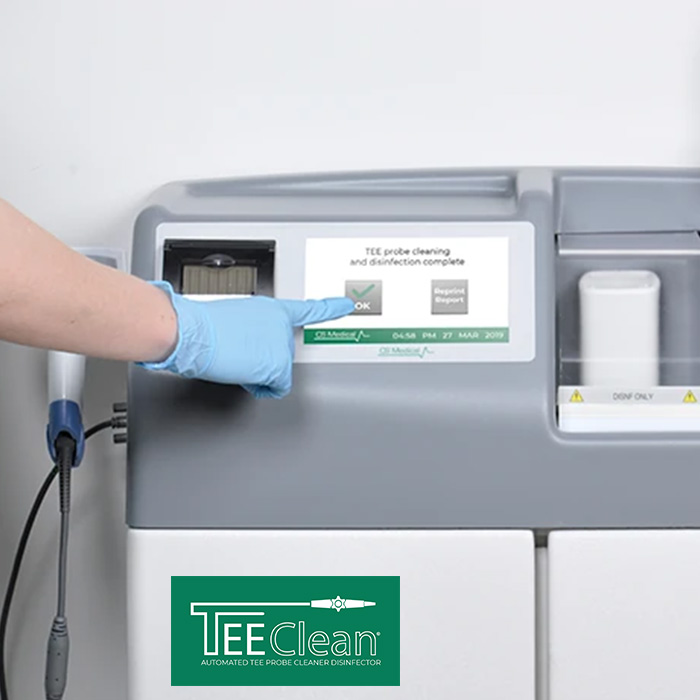

One minute of the technician's time to interact with TEEClean will begin the process of cleaning and high-level disinfecting a soiled TEE ultrasound probe. Just follow the helpful on-screen prompts:

TEEClean help screen

Select or Scan Probe

TEEClean stores a list of all TEE probes that could be cleaned and disinfected with the device. TEEClean will manage up to 99 individual TEE probes.

TEEClean select probe
TEEClean scan probe

Select or Scan User

TEEClean stores up to 99 unique user names and assigns user numbers to all trained technicians that use the device with scanning of a barcode associated with the user number or through a manual lookup on the LCD touchscreen.

TEEClean select user
TEEClean scan user

Perform Electrical Leakage Test

TEEClean provides prompts for completion of electrical leakage testing. Electrical leakage testing results are then recorded in TEEClean by the technician and then printed on the verification record as well as stored in system memory.

TEEClean electrical leakage test screen



Benefits

Reduced Handling

TEEClean incorporates an FDA validated cleaning method and removes the labor and time intensive manual portion of this process. TEEClean automates the enzymatic soak that has traditionally occurred in a sink or basin. By removing the manual process, TEEClean significantly reduces the handling of the delicate transducer of the TEE probe thus further reducing the chance for damage. Cleaning is the most important element to the proper reprocessing of any reusable medical device. Without effective cleaning of the reusable medical device any disinfectant or sterilant cannot properly work.

Electronic Records

TEEClean provides electronic records retention of the clean and disinfection cycle and records device maintenance events. A printed record is provided with the built-in thermal printer

Simplified Workflow

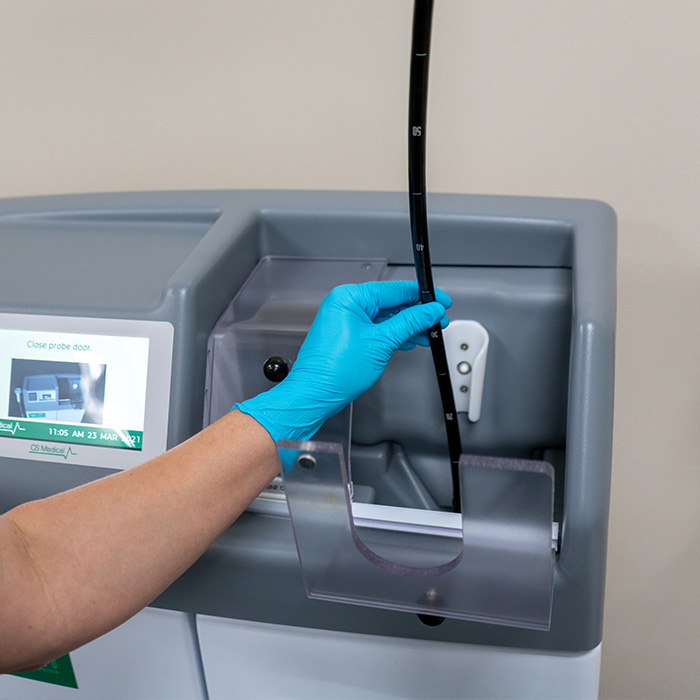

To use TEEClean simply place the bedside enzymatically treated, soiled TEE Probe directly into TEEClean, no additional steps required. Then, by following simple prompts on the color LCD display, the healthcare professional will enter information about the probe, disinfectant chemistry used for high-level disinfection and if the probe passed electrical leakage testing.

FDA Cleared

TEEClean is designed to provide cleaning and high-level disinfection of transesophageal ultrasound probes. The system has been cleared for use with TD-5 and TD-8 high-level disinfectants. These products have been cleared under 510(k) number K182891.



Features

Validated and FDA cleared cleaning method for TEE probes 5-minute high-level disinfection of TEE probes 7" color touch screen display with vivid user icons for easy operation Printed disinfection and maintenance record with integrated printer 5 nanometer filtered rinsed water (.005 micron)- FDA cleared Class II medical device Full system high-level disinfection for added preventative maintenance of TEEClean
Validated and FDA cleared high-level disinfection method for TEE probes Automated enzymatic cleaning solution: TEEZyme Data entry with integrated barcode scanner or manual keyboard entry Electronic record logging of all cleaning, disinfection and maintenance events for download, retention of over 15,000 records held in memory Advanced vapor management system for containment of high-level disinfectant



See CS Medical products in action



Product Information


CATALOG NUMBER
DESCRIPTION
CS-TCD100
TEEClean Automated TEE Probe Cleaner Disinfector
CS-201200
TEEZyme for TEEClean, Case of 2, 500 ml bottles
CS-201340
Case of 4 Water Filters
CS-201900
Main and Drain Vapor Management filter - TEEClean


Download Product Specifications
